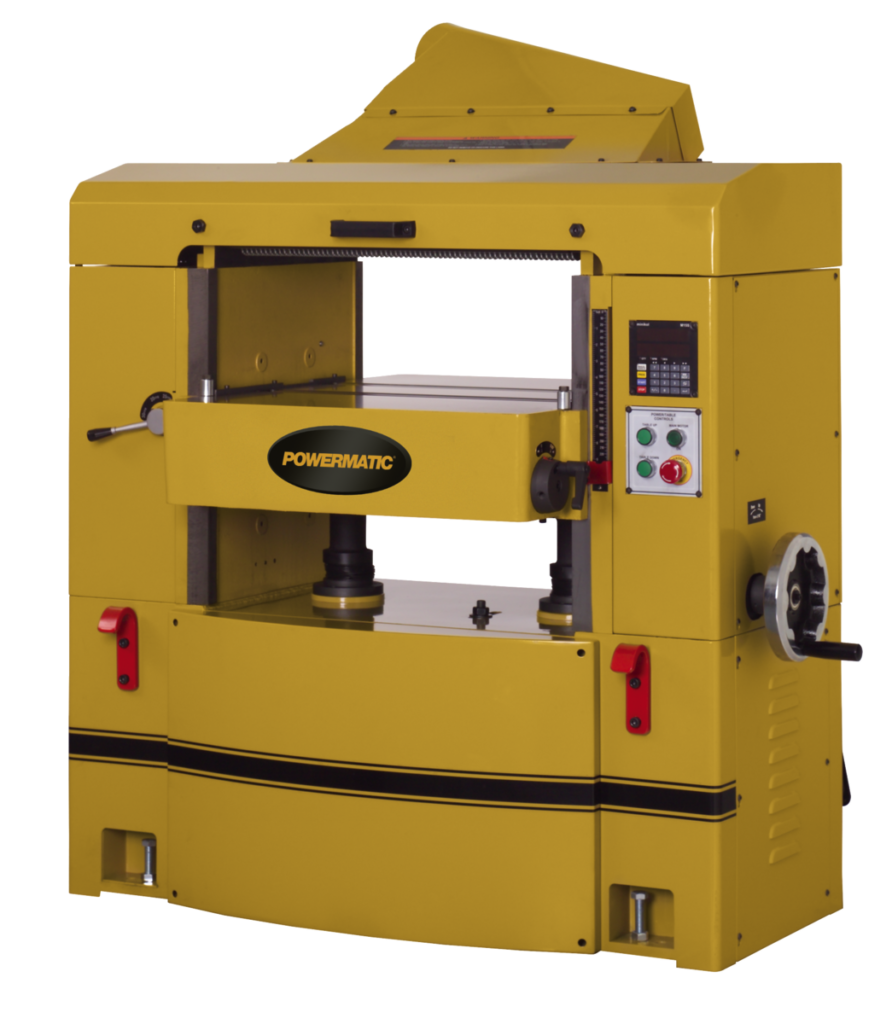

If you need a heavy duty industiral planer, look no further than the Powermatic WP2510 Planer. It has a solid steel helical cutterhead with 174 four-sided carbide knife inserts that require no adjustments when changing. With a digital readout and simple PC controller, setting up table heights is quick and easy. The frame is machined from heavy cast iron and has extra wide side panels that offer rigid bed support and ensure accurate alignment. The planer’s segmented, serrated infeed roll with segmented chip breakers has an independent yield of 1/4. Its automatically adjusting, chain drive gear box powers the 3? diameter infeed rollers, solid pressure bar and dual outfeed rollers for precise feeding of stock. The 3-speed feed selector gives woodworkers flexibility by changing feed rates quickly and easily. The WP2510 Planer has a large 32-3/16? x 26? precision-ground table which contains two adjustable table rollers for smooth feeding of uneven stock. The planer has a Quick-Set micro-adjustable lever that easily raises and lowers the table rollers from 0 to 0.05?.
Specs:
Type of Cutterhead HELICAL
Style (Type) Floor
Feed Rate (FPM) 20/25/30
Maximum Depth of Cut (In.) 1/4
Maximum Full Width Depth of Cut (In.) 1/8
Maximum Planing Width (In.) 25
Cuts Per Minute 30,000
Cutterhead Diameter (In.) 3-3/8
Cutterhead Speed (RPM) 5000
Minimum Planing Length (In.) 10
Infeed Roller Diameter (In.) 3
Motor Power (HP) 15
Column Diameter (In.) 2-1/2
Dust Collection Minimum CFM Required (CFM) 600
Motor Phase 3
Prewired Voltage (V.) 230
