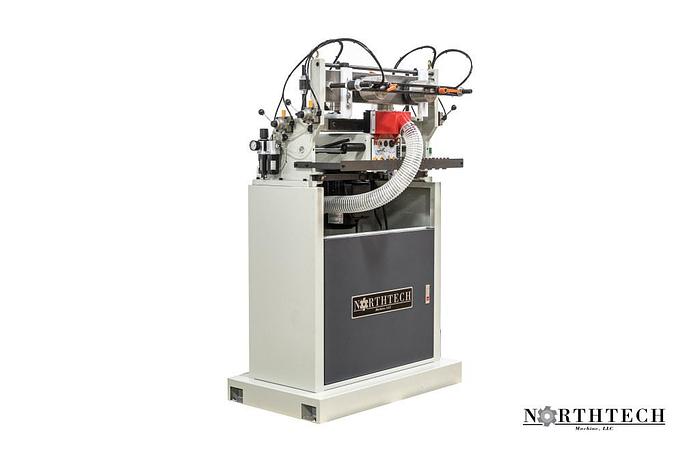

NT-DTM16M Manual Dovetailer
• Spindle motor: 1HP 1PH; 120V/240V 60HZ; 92AMP
• Min. workpiece size: 2.4″ x 7.9″
• Max. workpiece size: 16.5″ x 59″
• Min/Max dovetail height: 0.2″ ~ .7″
• Min/Max front thickness: 0.28″ ~ 2.4″
• Min/Max side thickness: 0.28″ ~ 3.6″
• Number of spindles: 1
• Spindle speed: 18,500RPM
• (4) Sided dovetail template included
• 1″, 1.5″, 2″, 2.5″ fixed pitch spacing
• Table height from floor: 46.5″
• (4) Pneumatic clamps to securely hold workpiece, individually operated
• Heavy steel base with cabinet door
• Tenon and mortise adjustment depth based on material thickness
• Comes with one four-sided template for different pitched dovetails (1″, 1.5″, 2″, 2.5″)
• UL/CE certified electrical components
• Air pressure required: 1/4″ airline @ 90PSI

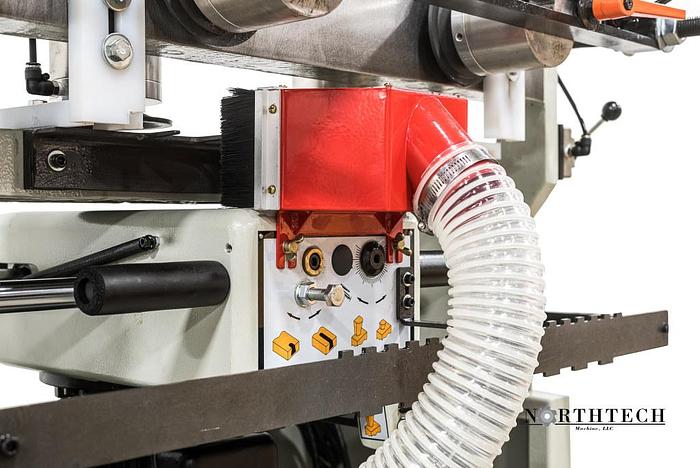

• Dust port (1) 4″ requiring 436CFM @ point of extraction and
• Machine/Packing weight: 418lbs / 500lbs
• Machine/Packing dimensions (LxWxH): 39″ x 27″ x 58″ / 31″ x 43″ x 67″
• (1) Tool box
• Standard Northtech one year parts warranty
• Northtech offers a full line of dust collectors for any application.
• All machines are tested stateside prior to shipment providing trouble free start up.
