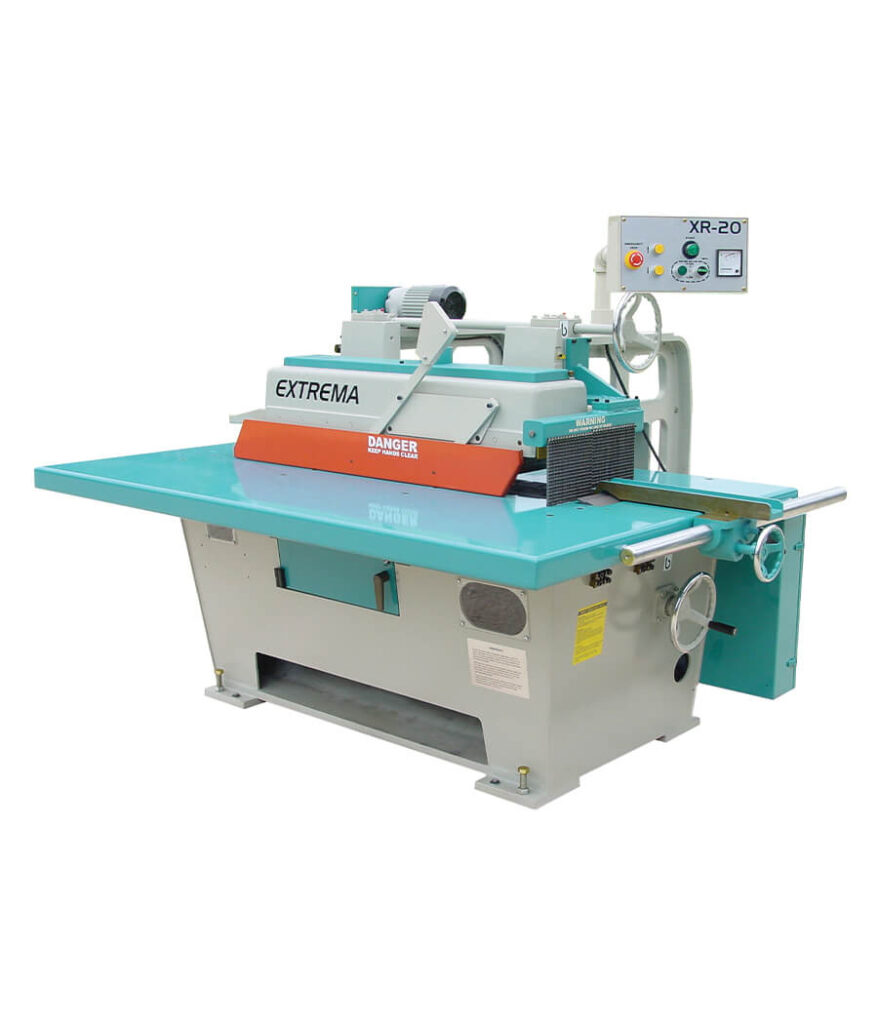

The Extrema XR-20 has a 14? to 20? saw blade capacity, making the ultimate machine for large heavy timber ripping. It features a garanteed 13 foot glue line, 20 HP main motor, optional digital readout, optional black max laser, and heat-treated cast steel chain.

Features:
14? to 20? blade capacity
20 HP motor
Automatic chain lubrication
Variable feed speed (50-180 fpm)
Rack and pinion fence
Quality electrical and pneumatic controls
Disc brakes
Triple anti-kickback finger
5-1/8? Maximum thickness
Bottom mounted blade for stability
12 Hold-down rollers
8-1/2? Wide Chain pads
Motorized elevation

Specs:
Horsepower: 20HP
Voltage: 230V or 460V
Phase(s): 3PH
Blade Size: 14? – 20?
Main Motor: 20 HP
Feed Motor: 3 HP
Elevation Motor: 1/2 HP
Blade Speed: 3600 RPM
Feed Speed: 50 – 180
Max Rip Capacity: 35 3/4?
Working Height: 33 1/2
Table Size: 52? x 82 1/2?
Hold Down Rollers: 12
Chain Rail Length: 53?
Chain Pad Width: 8 1/2?
Guaranteed Glue Line Length: 13?
Set of Anti-Kickback Fingers: 3
Disc Brakes: Yes
Oiler System: Auto
AMPS (230V/460V): 58A / 29A
Max Thickness Capacity: 5 1/8?
Weight: 4900 lbs
