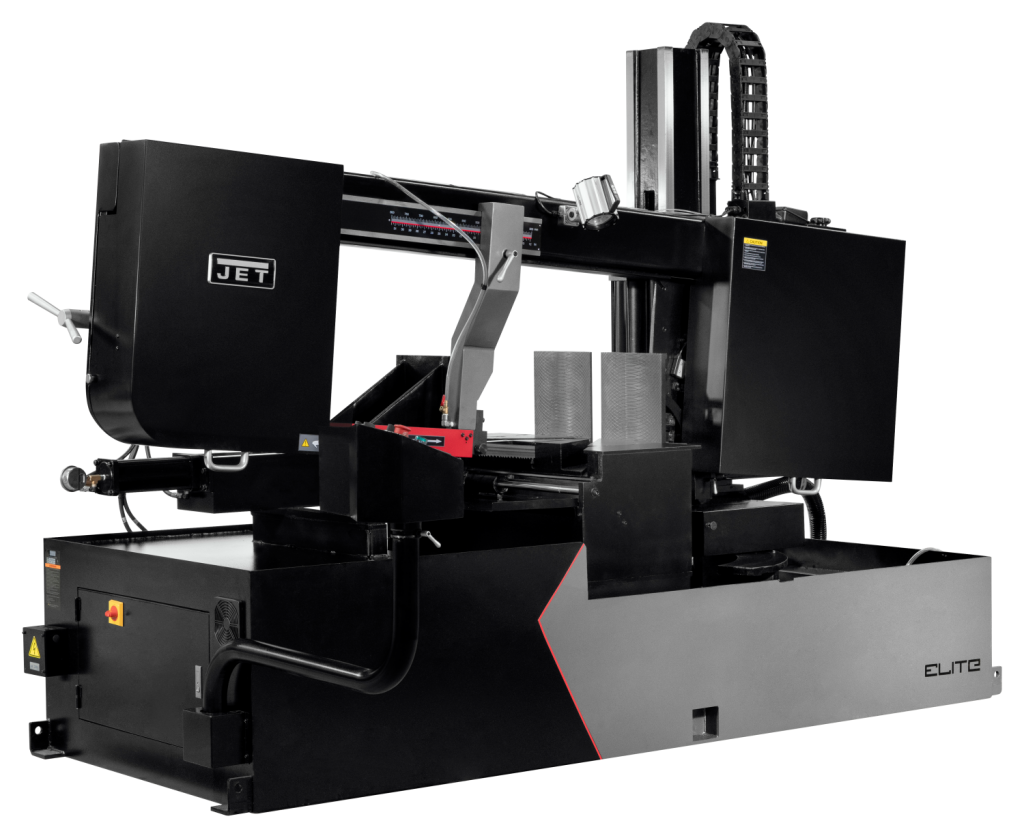

With features unmatched, the JET Dual Mitering , Semi-Automatic, EVS Bandsaw is the perfect solution for cutting structural steel with ease.

FEATURES
Electronic variable speed from 50-297 SFPM
Heavy duty construction reduces vibration and deflection
Hydraulic assist descent control
Auto table swivel
Blade tension gauge helps to ensure the blade is in the correct cutting position
Semi-auto on saw bow lifting and hydraulic vise
Swing away control box allows Operator to use in any position
SPECIFICATIONS
Throat Depth (In.)18
Blade Speeds Metal (SFPM)50.3
Blade Speeds (SFPM)50 – 300
Round at 45 Degrees (In.)18
Round at 60 Degrees (In.)18
Round at 90 Degrees (In.)15
Blade Length (In.)240
Rectangle at 45 Degrees (In.)18 x 20-13/16
Rectangle at 60 Degrees (In.)18 x 14-29/32
Cutting Capacity (W x D) (In.)18 x 33
Blade Speed (SFPM)150-300
Rectangle at 90 Degrees (In.)18 x 31-1/2
Square at 60 Degrees (In.)15 x 15
Weight (Lbs.)5060
Blade Wheel Diameter (In.)22-53/64
Overall Height (In.)82-5/8
Electrics7-1/2HP, 230V, 3Ph
Bed Height (In.)33-15/32
Maximum Vise Opening (In.)31-1/2
Square at 45 Degrees (In.)18 x 18
Square at 90 Degrees (In.)18 x 18
Motor (HP)7-1/2
Floor Space Required (In.)110 x 74 x 82-5/8
Shipping Weight (Lbs.)5500
Coolant Pump Motor1/8HP, 230V, 3PH
Overall Dimensions (L x W x H) (In.)110 x 75 x 83
Prewired Voltage (V.)230
DriveEVS
Net Weight (Lbs.)5060
Gross Weight (Lbs)5500
