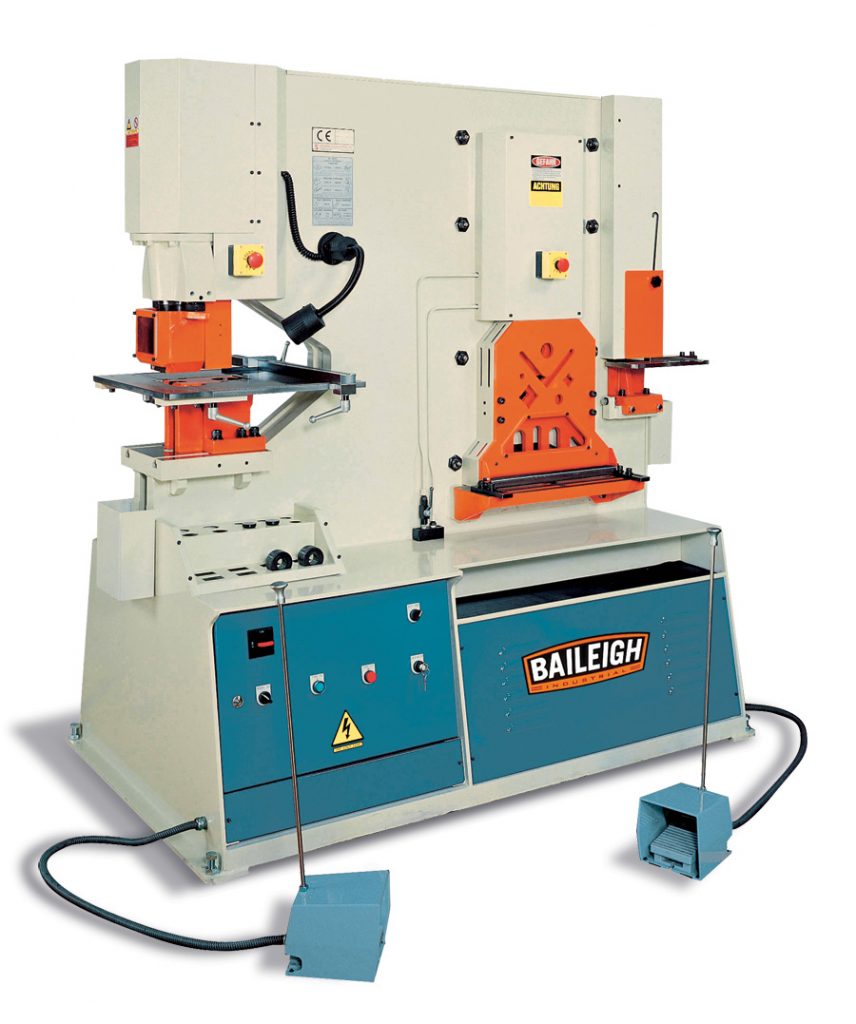

Looking to increase productivity in your shop? This hydraulic ironworker enables 2 operators to work independently at any of the machine’s 5 stations. Plus, the machine’s pure vertical movement minimizes distortion and delivers clean cuts every time.

SW-95 universal ironworker runs on 220-volt 3-phase power.
95 tons of punching pressure and a whopping 123 tons of shearing and notching force.
5 integrated workstations each execute a different function: punching, notching, flat bar shearing, angle shearing, and bar shearing.
Dual-operator design enables 2 people to work at opposite ends of the machine simultaneously without loss of power at either station.
Hydraulic cylinders use entirely vertical movement to perform all functions.
Electric backgauge and adjustable material stops save you effort and deliver precise results for production runs.
Large worktables separate into 2 pieces, allowing you to get angle iron and oddly-shaped materials to the punch without difficulty.
Includes 7 sets of punches and dies to accommodate a variety of applications.
Accepts universal tooling. Jog dial allows for simple and secure tool alignment.
Foot pedal provides convenient stop and start control.
Adjustable stroke control of both the upward and downward strokes limits movement and reduces costs.
Extra-deep 16” throat depth at the punch station handles large pieces of material and increases capacity.
Hydraulic hold-downs at the shear station ensure safe operation and even cuts.
Waste buckets keep your shop neat and reduce time spent on clean-up.
Heavy structural steel plate framework ensures rigidity and eliminates flexing.
Baileigh covers the SW-95 universal ironworker with a 1-year parts warranty and lifetime technical support by phone.
Why choose the SW-95 over similar machines?

You won’t find another ironworker that can muster such heavy force across 5 function stations.
Vertical hydraulic movement needs less clearance and decreases material waste. By contrast, many competing brand ironworkers depend on less efficient pivot mechanisms.
The SW-95 will let you finish tasks twice as fast by enabling 2 people to use it at the same time.
Punch tooling lasts longer on the SW-95 because stress is spread out over the entire circumference of the punch instead of just one edge.
Baileigh’s patented swing-away stripper allows for the quickest tooling changes in the industry.
Comes standard with a number of extras, like waste buckets and oversized work tables, features that other manufacturers consider upgrades.

Item Number SW-95
Round Bar Shear 1.75?
Rectangle Notcher W x D x T 2? x 3.5? x .5?
Single Vee Press Brake L x T 9.875? x .625?*
Punch Capacity 1.062? x .875?
Punching Pressure 95 Tons
Pipe Notching 4.4?*
Multi Vee Press Brake L x T 19.625? x .187?*
Notching Working Height 41.3?
Throat Depth 16?
Vee Notcher Side x Side x T 4.1? x 4.1? x .5?*
Working Height 41.3?
Square Bar Shear 1.75? x 1.75?
Angle Shearing Working Height 40.9?
Angle Shearing at 90° 5.125? x 5.125? x .5?
Angle Bending 4? x .312?*
Angle Flange Trim 4?
Blade Length 16.125?
Large V Notcher Side x Side x T 5.75? x 5.75? x .375?*
Max. Stroke Length 3.93?
Diameter x Thickness 2? x .5?
Cycles / Min. 38 @ 15 mm
Flat Bar Shearing 16? x .75?
Flat Shearing Working Height 28.5?
Power 220V / 3-phase
Shipping Weight 6225lbs
Shipping Dimensions (Inches) 85x55x85
